Benchmarks against the R ecosystem

Gregor Lueg

2026-10-15

Source: vignettes/articles/benchmarks.qmd

How does annsearchR stack up against the nearest neighbour packages R users actually reach for? We ran the ann-benchmarks protocol on two of its standard datasets and compared every library at equal recall, not at equal settings. Two libraries with the same ef_search can land at different recall, so “faster at the same parameters” says little. Instead each library builds once, its search-time knob is swept, and we read off the best queries per second (QPS) it reaches at recall@10 of 0.90, 0.95 and 0.99.

These are numbers from one machine on one day, frozen here rather than rebuilt with the package. Everything needed to rerun them is in inst/benchmarks/.

Setup

  • Machine: Apple M1 Max, 10 cores (8 performance, 2 efficiency), macOS.
  • Datasets: Fashion-MNIST, 60,000 x 784 (28 x 28 greyscale product photos), and SIFT-128, 1,000,000 x 128 (local image descriptors). Both use 10,000 held-out queries, k = 10, Euclidean distance and the ground truth that ships with the HDF5 files.
  • Matched build parameters: HNSW at M = 16 and ef_construction = 200; Annoy at 50 trees; NN-Descent graphs of degree 30.
  • Swept at query time: HNSW and NN-Descent ef_search from 10 to 640; Annoy search_k from 500 to 50,000; IVF nprobe from 2 to 128; rnndescent’s epsilon from 0 to 0.3.
  • Libraries: annsearchR (Rust, via ann-search-rs), RcppHNSW (hnswlib), RcppAnnoy (Spotify’s Annoy), BiocNeighbors (KMKNN, plus hnswlib and Annoy), rnndescent (NN-Descent), FNN and RANN (exact kd-trees).

Each point is a single timed run over all 10,000 queries. Two repeat runs of the Fashion-MNIST sweep agreed within about 5% for most points, but one rnndescent point moved 1.5x between runs, so read small gaps as ties.

Results

Each panel is one algorithm family. Up and to the right is better. The dashed line is annsearchR’s exact brute-force search: an approximate index below it isn’t worth building on that data.

Fashion-MNIST, 10 threads

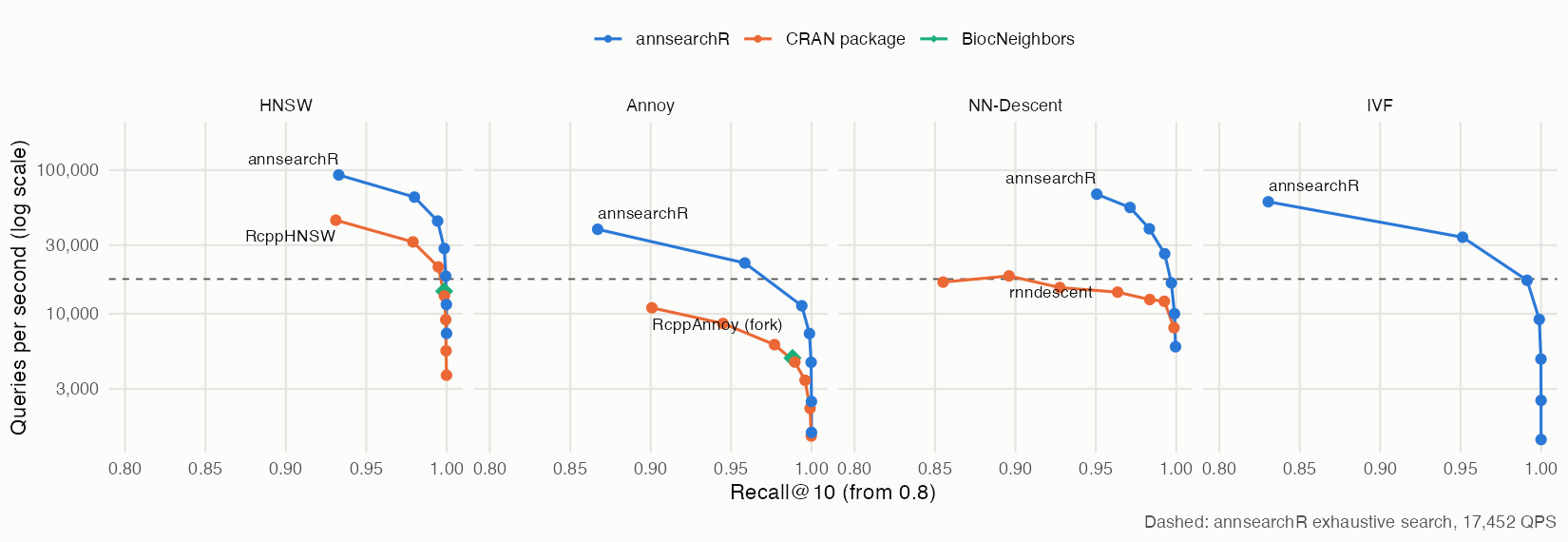

Recall vs queries per second on Fashion-MNIST with 10 threads, one panel per algorithm family
Method Library Build (s) QPS @ 0.90 QPS @ 0.95 QPS @ 0.99
hnsw annsearchR 3.5 92,593 64,935 44,248
hnsw RcppHNSW 8.4 44,843 31,646 21,186
hnsw BiocNeighbors 66.3 14,347 14,347 14,347
nndescent annsearchR 3.3 68,027 68,027 26,178
nndescent rnndescent 15.8 15,221 14,144 12,210
ivf annsearchR 1.4 34,130 34,130 17,094
annoy annsearchR 1.7 22,573 22,573 11,364
annoy RcppAnnoy (fork) 16.0 11,001 6,094 3,444
annoy BiocNeighbors 15.6 4,921 4,921 n/a
exhaustive annsearchR 0.1 17,452 17,452 17,452
kmknn annsearchR 1.3 2,137 2,137 2,137
kmknn BiocNeighbors 117.2 781 781 781
kd_tree RANN - 33 33 33
kd_tree FNN - 33 33 33

SIFT-128, 10 threads

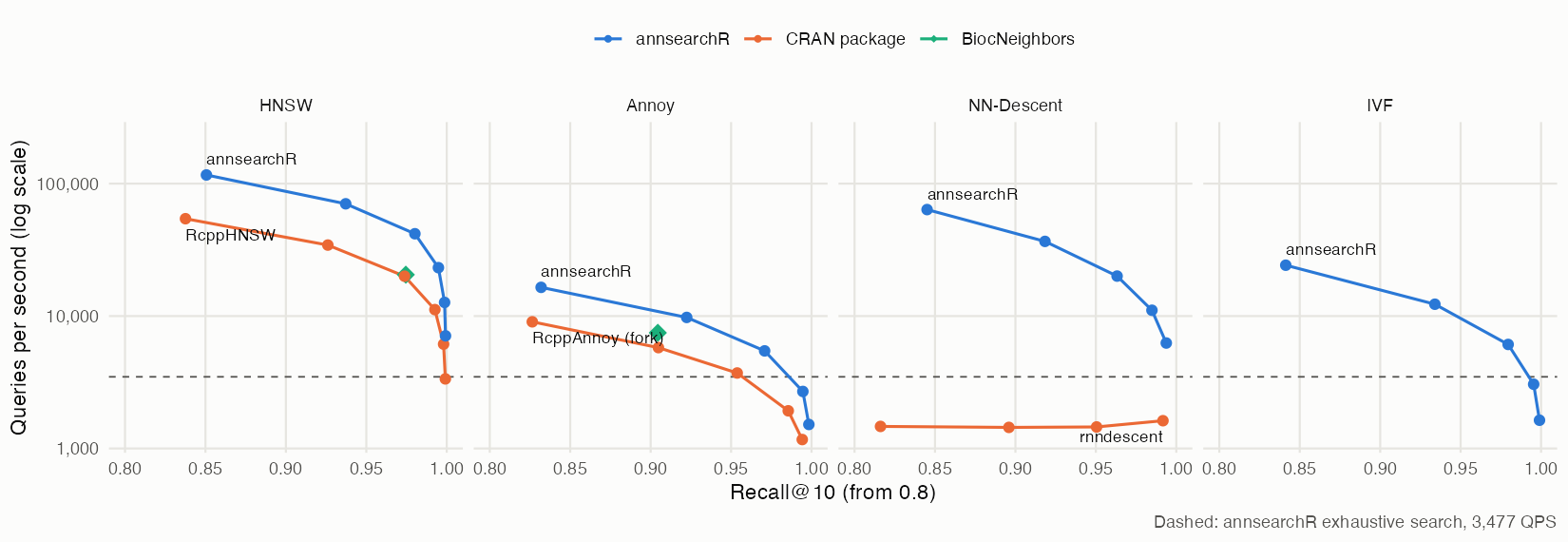

Recall vs queries per second on SIFT-128 with 10 threads, one panel per algorithm family
Method Library Build (s) QPS @ 0.90 QPS @ 0.95 QPS @ 0.99
hnsw annsearchR 52.3 70,423 41,841 23,202
hnsw RcppHNSW 103.4 34,364 20,000 11,186
hnsw BiocNeighbors 659.9 20,534 20,534 n/a
nndescent annsearchR 29.7 36,630 20,040 6,258
nndescent rnndescent 207.8 1,621 1,621 1,621
ivf annsearchR 2.5 12,285 6,105 3,056
annoy annsearchR 10.1 9,766 5,459 2,695
annoy BiocNeighbors 93.7 7,474 n/a n/a
annoy RcppAnnoy (fork) 101.5 5,777 3,716 1,168
exhaustive annsearchR 0.4 3,477 3,477 3,477
kmknn annsearchR 2.1 491 491 491
kmknn BiocNeighbors 867.0 277 277 277
kd_tree FNN - 6 6 6
kd_tree RANN - 5 5 5

Fashion-MNIST, 1 thread

The ann-benchmarks convention, and the fair fight for the single-threaded RcppAnnoy, FNN and RANN.

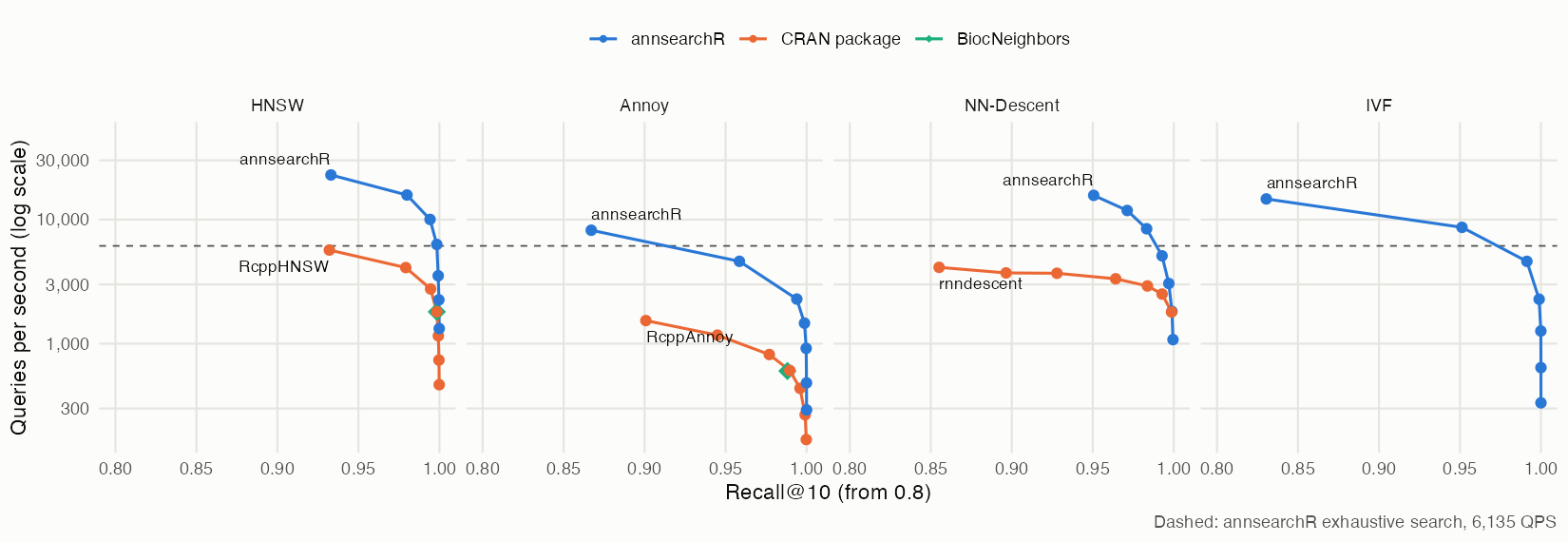

Recall vs queries per second on Fashion-MNIST with 1 thread, one panel per algorithm family
Method Library Build (s) QPS @ 0.90 QPS @ 0.95 QPS @ 0.99
hnsw annsearchR 17.8 22,883 15,773 10,030
hnsw RcppHNSW 67.4 5,682 4,102 2,760
hnsw BiocNeighbors 65.8 1,806 1,806 1,806
nndescent annsearchR 15.4 15,674 15,674 5,102
nndescent rnndescent 82.4 3,691 3,331 2,509
ivf annsearchR 1.9 8,658 8,658 4,604
annoy annsearchR 5.7 4,608 4,608 2,287
annoy RcppAnnoy 15.7 1,534 817 436
annoy BiocNeighbors 15.4 602 602 n/a
exhaustive annsearchR 0.1 6,135 6,135 6,135
kmknn annsearchR 1.8 671 671 671
kmknn BiocNeighbors 117.2 100 100 100
kd_tree RANN - 33 33 33
kd_tree FNN - 32 32 32

What the numbers say

  • HNSW: annsearchR runs about 2x the queries per second of RcppHNSW at every recall target on both datasets with 10 threads, and builds 2 to 2.4x faster. Recall at the same ef_search is within about 0.01 of RcppHNSW’s, so the graphs are of the same quality; the Rust search is just quicker. On one thread the gap widens to 3.6 to 4x: RcppHNSW gains more from extra threads than annsearchR does.
  • NN-Descent: against rnndescent, 4.5x faster at recall 0.90 on Fashion-MNIST and 23x on SIFT, with builds 5 to 7x faster.
  • Annoy: RcppAnnoy has no threads and no batch query, so the only way to use more cores from R is forking over query chunks with parallel::mclapply. That’s what the “(fork)” rows are, fork cost included. annsearchR still does 1.5 to 3.7x the QPS and builds about 10x faster.
  • Exact search: annsearchR’s brute force beats every exact competitor by a mile: about 530x the single-threaded FNN and RANN kd-trees on Fashion-MNIST, and 22x BiocNeighbors’ KMKNN. It also beats its own KMKNN on both datasets: at 784 and 128 dimensions, pruning by k-means clusters doesn’t pay against a blocked GEMM.
  • Builds: BiocNeighbors builds its HNSW, Annoy and KMKNN indices on one thread whatever num.threads says, which is where its 11 and 14.5 minute SIFT builds come from.

Caveats

  • Brute force isn’t single-core even on “1 thread”. On macOS the exhaustive index runs large batches through Apple Accelerate. At “1 thread” it worked out to roughly 577 GFLOP/s on Fashion-MNIST, far more than one core can do, so read its 1-thread numbers as Accelerate’s. The approximate indices don’t use that path.
  • BiocNeighbors HNSW and Annoy are single points. Its prebuilt index bakes the search parameter in, so sweeping it would mean one rebuild per point. We matched it to the middle of the sweep instead (ef.search = 80, search_k = 5,000).
  • rnndescent spends its time per query, not in the search. Its QPS stays flat across the whole epsilon sweep while recall climbs from 0.59 to 0.99 on SIFT. A fixed cost per call is about 0.25 s, about 5% of a 10,000-query call; the rest is roughly 0.44 ms per query regardless of epsilon. Where exactly that goes is inside its C++ code and wasn’t profiled further.
  • SIFT ground truth: annsearchR’s exhaustive search reaches recall 0.9993 against the file’s own ground truth, not 1.0000. Ties between integer-valued descriptors are the likely reason; nothing in the tables depends on it.

Rerunning

# downloads the HDF5 files once into tools::R_user_dir("annsearchR", "cache")
Rscript inst/benchmarks/bench_ann_benchmarks.R fashion-mnist-784-euclidean 10
Rscript inst/benchmarks/bench_ann_benchmarks.R sift-128-euclidean 10

# plots from inst/benchmarks/results/*_sweep.csv
Rscript inst/benchmarks/plot_results.R

On SIFT the index builds alone add up to about 35 minutes on the machine above, most of it in the single-threaded BiocNeighbors and RcppAnnoy builds.
