Gene set analysis and GRN inference on PBMCs
Intro
This vignette demonstrates the gene set scoring, spatial autocorrelation, and gene regulatory network (GRN) inference methods available in bixverse. It picks up where the PBMC vignette left off: QC, normalisation, PCA, nearest neighbours, clustering and UMAP are all assumed to be done already. If you have not read the design choices and the introductory vignette, please do so first.
The methods fall into two broad categories:
- The first, module scores, AUCell, and VISION, takes pre-defined gene sets and scores them per cell.
- The second, Hotspot and SCENIC, discovers gene programmes and regulatory relationships from the data itself.
We use the PBMC3k dataset throughout. At 2,700 cells this is likely too small for the GRN methods to produce biologically meaningful results, but it is large enough to show the API and the workflow end to end. On real datasets with tens of thousands of cells the same code applies unchanged. Also, as the
Note
The vignette was built on a GitHub runner which is a 2-core machine with ~8 GB of memory. That this works is incredible enough, but take this into account when looking at this vignette.
Rebuilding the processed object
We reconstruct the processed SingleCells object from the PBMC vignette. The chunk is hidden for brevity: it downloads the data, runs QC, HVG selection, PCA, neighbour computation, Leiden clustering and UMAP.
Rebuild the PBMC3k object (click to expand)
pbmc3k_path <- bixverse:::download_pbmc3k()
tempdir_pbmc <- tempdir()
sc_object <- SingleCells(dir_data = tempdir_pbmc)
mtx_io_params <- get_cell_ranger_params(pbmc3k_path)
sc_object <- load_mtx(
object = sc_object,
sc_mtx_io_param = mtx_io_params,
streaming = FALSE,
.verbose = FALSE
)
setnames_sc(sc_object, table = "var", old = "column1", new = "gene_symbol")
var <- get_sc_var(sc_object)
ensembl_to_symbol <- setNames(var$gene_symbol, var$gene_id)
symbol_to_ensembl <- setNames(var$gene_id, var$gene_symbol)
# gene set proportions for QC
gs_of_interest <- list(
MT = var[grepl("^MT-", gene_symbol), gene_id],
Ribo = var[grepl("^RPS|^RPL", gene_symbol), gene_id]
)
sc_object <- gene_set_proportions_sc(
sc_object,
gs_of_interest,
streaming = FALSE,
.verbose = FALSE
)
# MAD QC
qc_df <- sc_object[[c("cell_id", "lib_size", "nnz", "MT")]]
metrics <- list(
log10_lib_size = log10(qc_df$lib_size),
log10_nnz = log10(qc_df$nnz),
MT = qc_df$MT
)
directions <- c(
log10_lib_size = "twosided",
log10_nnz = "twosided",
MT = "above"
)
qc <- run_cell_qc(metrics, directions, threshold = 3)
sc_object[["outlier"]] <- qc$combined
cells_to_keep <- qc_df[!qc$combined, cell_id]
sc_object <- set_cells_to_keep(sc_object, cells_to_keep)
# HVG, PCA, neighbours, clustering, UMAP
sc_object <- find_hvg_sc(sc_object, hvg_no = 2000L, .verbose = FALSE)
sc_object <- calculate_pca_sc(sc_object, no_pcs = 30L, sparse_svd = TRUE)
#> Using sparse SVD solving on scaled data on 2000 HVG.
sc_object <- find_neighbours_sc(
sc_object,
neighbours_params = params_sc_neighbours(
knn = list(knn_method = "exhaustive")
)
)
#>
#> Generating sNN graph (full: FALSE).
#> Transforming sNN data to igraph.
sc_object <- find_clusters_sc(sc_object, res = 1.5, name = "leiden_clusters")
sc_object <- umap_sc(sc_object, knn_method = "annoy")
#> Running UMAP.
#> Using n_epochs = 500 (dataset <10k samples or adam_parallel optimiser)
#> Using provided kNN graph.
# UMAP coordinates for reuse
umap_dt <- as.data.table(
get_embedding(sc_object, "umap"),
keep.rownames = "cell_id"
)Gene set scoring
Module scores
The simplest approach to gene set activity is the module score from Tirosh et al. (2016): for each cell, compute the mean expression of the gene set and subtract the mean expression of a size-matched control set drawn from the same expression bins. We will just use some lineage-specific genes to have pretty visualisations.
lineage_sets <- list(
`T cell` = symbol_to_ensembl[c(
"CD3D",
"CD3E",
"CD3G",
"CD2",
"IL7R",
"CD7",
"LEF1",
"TCF7",
"LTB",
"TRAC"
)],
`Cytotoxic NK` = symbol_to_ensembl[c(
"NKG7",
"GNLY",
"GZMA",
"GZMB",
"GZMH",
"PRF1",
"CST7",
"KLRD1",
"KLRB1",
"FGFBP2"
)],
`B cell` = symbol_to_ensembl[c(
"CD79A",
"CD79B",
"MS4A1",
"BANK1",
"IGHM",
"IGHD",
"CD74",
"HLA-DQA1",
"TCL1A",
"VPREB3"
)],
`Monocyte` = symbol_to_ensembl[c(
"CD14",
"LYZ",
"S100A8",
"S100A9",
"S100A12",
"CST3",
"FCN1",
"VCAN",
"MNDA",
"TYROBP"
)]
)
# drop any NAs
lineage_sets <- lapply(lineage_sets, function(x) x[!is.na(x)])
module_scores <- module_scores_sc(
object = sc_object,
gs_list = lineage_sets,
.verbose = FALSE
)
ms_dt <- as.data.table(module_scores, keep.rownames = "cell_id")
ms_dt <- merge(ms_dt, umap_dt, by = "cell_id")
ms_long <- melt(
ms_dt,
id.vars = c("cell_id", "umap_1", "umap_2"),
measure.vars = names(lineage_sets),
variable.name = "phase",
value.name = "score"
)

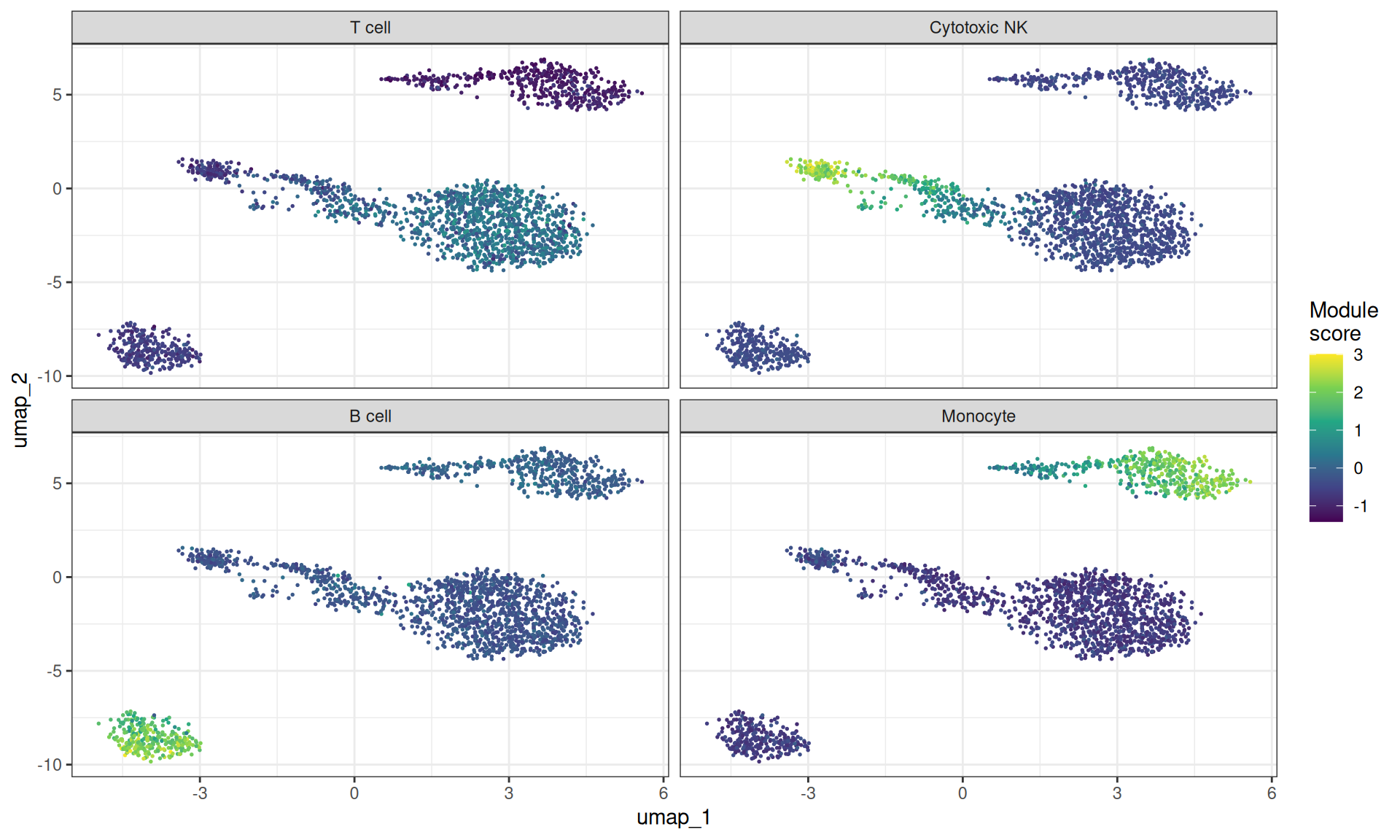

ggplot(ms_long, aes(x = umap_1, y = umap_2)) +
geom_point(aes(colour = score), size = 0.3) +
scale_colour_viridis_c() +
facet_wrap(~phase, ncol = 2) +
theme_bw() +
labs(colour = "Module\nscore")
AUCell
AUCell ranks genes within each cell by expression and computes the area under the recovery curve for the gene set. This is more robust to outliers than a simple mean. bixverse provides two flavours: a Wilcoxon-statistic-based AUC and a standard AUROC. The two are highly correlated; we show the Wilcoxon variant here.
auc_scores <- aucell_sc(
object = sc_object,
gs_list = lineage_sets,
auc_type = "wilcox",
.verbose = FALSE
)
auc_dt <- as.data.table(auc_scores, keep.rownames = "cell_id")
auc_dt <- merge(auc_dt, umap_dt, by = "cell_id")
auc_long <- melt(
auc_dt,
id.vars = c("cell_id", "umap_1", "umap_2"),
measure.vars = names(lineage_sets),
variable.name = "phase",
value.name = "auc"
)

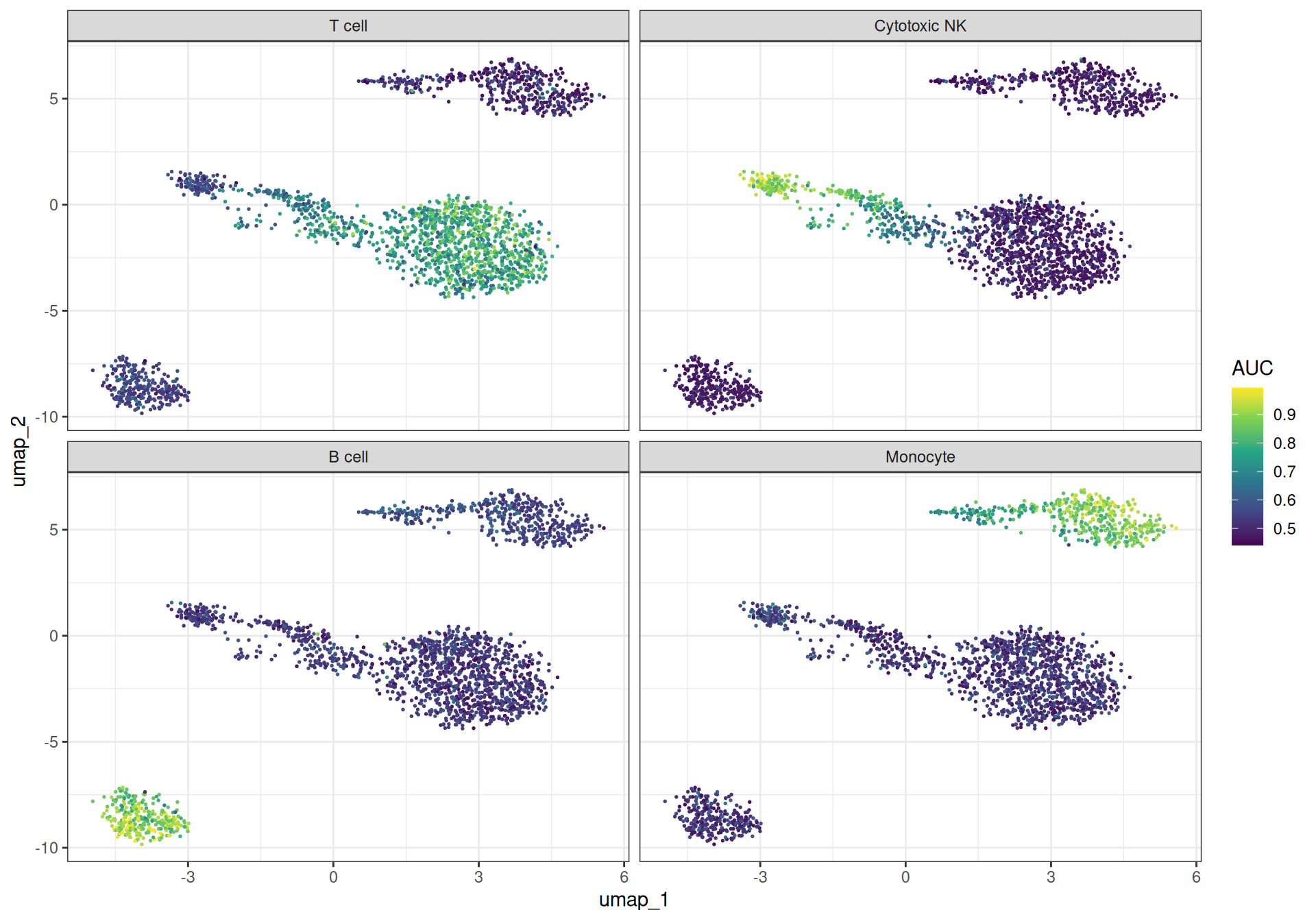

ggplot(auc_long, aes(x = umap_1, y = umap_2)) +
geom_point(aes(colour = auc), size = 0.3) +
scale_colour_viridis_c() +
facet_wrap(~phase) +
theme_bw() +
labs(colour = "AUC")
VISION with spatial autocorrelation
Scoring gene sets is useful, but a natural follow-up question is: are these scores spatially structured on the cell neighbourhood graph, or just noise? VISION provides a permutation-based test of spatial autocorrelation (Geary’s C) on the kNN graph. Gene sets with significant autocorrelation are those whose activity varies smoothly across cell neighbourhoods – a strong indication that the signal is biologically meaningful rather than random.
VISION expects gene sets in a signed format with pos and (optionally) neg components. In the cause of our cell lineage genes, we could use the other cell type’s markers as negatives, but we will just leave it blank here.
vision_gs <- lapply(lineage_sets, function(genes) list(pos = genes))
vision_res <- vision_w_autocor_sc(
object = sc_object,
gs_list = vision_gs,
embd_to_use = "pca",
vision_params = params_sc_vision(n_perm = 500L),
.verbose = TRUE
)
#> Generating 5 random gene set clusters with a total of 500 permutations.
head(vision_res$auto_cor_dt)
#> gene_set_name auto_cor p_val fdr
#> <char> <num> <num> <num>
#> 1: T cell 0.7568005 0.001996008 0.002661344
#> 2: Cytotoxic NK 0.4578163 0.009980040 0.009980040
#> 3: B cell 0.5715143 0.001996008 0.002661344
#> 4: Monocyte 0.5571136 0.001996008 0.002661344Unsurprisingly, all of these gene sets show highly significant spatial correlation.
Hotspot
Where the methods above test pre-defined gene sets, Hotspot (DeTomaso & Yosef, 2021) discovers gene programmes de novo by testing each gene for spatial autocorrelation on the kNN graph and then grouping the significant genes by their local correlation structure.
Gene autocorrelation
The first step computes Geary’s C for every gene against the neighbour graph. Genes with significant autocorrelation are those whose expression varies smoothly across neighbouring cells, i.e., genes that mark spatially coherent programmes.
hotspot_autocor <- hotspot_autocor_sc(
object = sc_object,
.verbose = FALSE
)
hotspot_autocor[, gene_symbol := ensembl_to_symbol[gene_id]]
head(hotspot_autocor[order(fdr)], 20L)
#> gene_id gaerys_c z_score pval fdr gene_symbol
#> <char> <num> <num> <num> <num> <char>
#> 1: ENSG00000163131 0.5366797 42.91577 0 0 CTSS
#> 2: ENSG00000163220 0.7227547 66.40027 0 0 S100A9
#> 3: ENSG00000143546 0.6843615 67.94934 0 0 S100A8
#> 4: ENSG00000197956 0.5665674 60.65974 0 0 S100A6
#> 5: ENSG00000196154 0.6060494 63.34227 0 0 S100A4
#> 6: ENSG00000177954 0.5416360 73.15498 0 0 RPS27
#> 7: ENSG00000158869 0.6635510 57.40018 0 0 FCER1G
#> 8: ENSG00000203747 0.5674031 49.58241 0 0 FCGR3A
#> 9: ENSG00000198821 0.2257416 53.25403 0 0 CD247
#> 10: ENSG00000143185 0.3175716 52.36314 0 0 XCL2
#> 11: ENSG00000143184 0.3614058 64.42496 0 0 XCL1
#> 12: ENSG00000143947 0.3309335 45.01268 0 0 RPS27A
#> 13: ENSG00000115523 0.5998338 125.16331 0 0 GNLY
#> 14: ENSG00000153563 0.2413221 45.56990 0 0 CD8A
#> 15: ENSG00000172116 0.2275548 42.96105 0 0 CD8B
#> 16: ENSG00000071082 0.3413935 48.71975 0 0 RPL31
#> 17: ENSG00000144713 0.3609772 56.28450 0 0 RPL32
#> 18: ENSG00000233276 0.4705675 43.87036 0 0 GPX1
#> 19: ENSG00000196542 0.3204369 52.86174 0 0 SPTSSB
#> 20: ENSG00000159674 0.4994881 94.23473 0 0 SPON2
#> gene_id gaerys_c z_score pval fdr gene_symbol
#> <char> <num> <num> <num> <num> <char>Known PBMC markers (LYZ, CD3D, NKG7, etc.) should appear among the top hits.
Gene-gene local correlations and modules
Taking the significant genes forward, we compute pairwise local correlations and cluster them into modules. Each module represents a group of genes that are not only individually autocorrelated but also co-vary locally - a much stronger signal than global correlation alone.
sig_genes <- hotspot_autocor[fdr <= 0.05, gene_id]
hotspot_cor <- hotspot_gene_cor_sc(
object = sc_object,
genes_to_take = sig_genes,
.verbose = TRUE
)
hotspot_cor
#> Hotspot gene-gene local correlation results
#> Genes: 2084
#> Cells: 2163
#> Modules: not yet computed (see generate_hotspot_membership)This returns a HotSpot result. Let’s add the membership and plot it.
hotspot_cor <- generate_hotspot_membership(hotspot_cor)

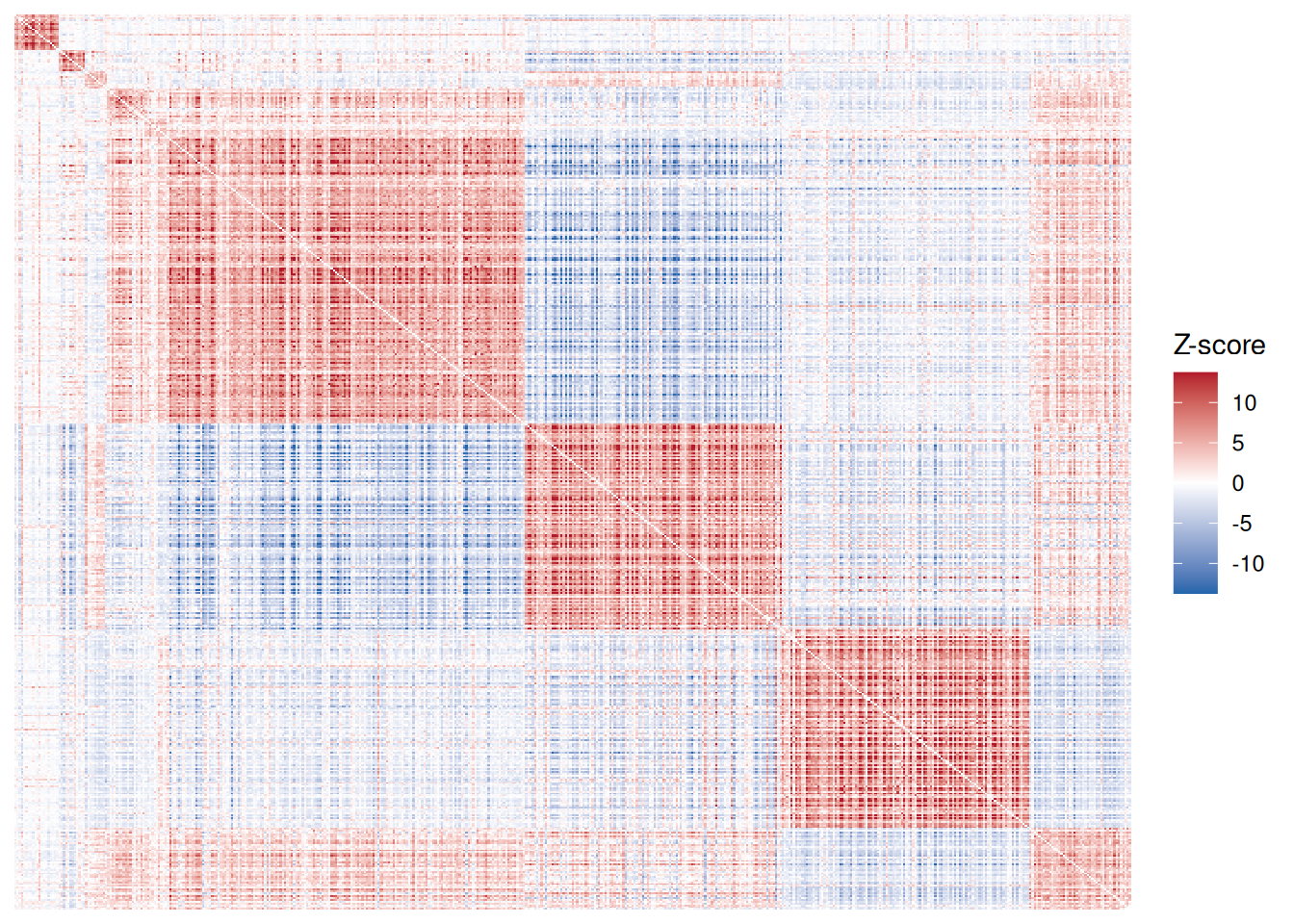

# this will only plot a subsample of 500 genes for speed (stratified by
# module). You can control this via a parameter in the plotting function
plot(hotspot_cor)
Let’s pull out the genes:
membership <- get_hotspot_membership(hotspot_cor)
membership[, gene_symbol := ensembl_to_symbol[gene_id]]
membership <- membership[!is.na(cluster_member)]
head(membership[order(cluster_member)], 20L)
#> gene_id cluster_member gene_symbol
#> <char> <num> <char>
#> 1: ENSG00000117155 557 SSX2IP
#> 2: ENSG00000117586 557 TNFSF4
#> 3: ENSG00000150681 557 RGS18
#> 4: ENSG00000187699 557 C2orf88
#> 5: ENSG00000168497 557 SDPR
#> 6: ENSG00000088726 557 TMEM40
#> 7: ENSG00000169704 557 GP9
#> 8: ENSG00000163737 557 PF4
#> 9: ENSG00000163736 557 PPBP
#> 10: ENSG00000245954 557 RP11-18H21.1
#> 11: ENSG00000158985 557 CDC42SE2
#> 12: ENSG00000113140 557 SPARC
#> 13: ENSG00000176783 557 RUFY1
#> 14: ENSG00000272053 557 RP11-367G6.3
#> 15: ENSG00000180573 557 HIST1H2AC
#> 16: ENSG00000204420 557 C6orf25
#> 17: ENSG00000161911 557 TREML1
#> 18: ENSG00000171611 557 PTCRA
#> 19: ENSG00000223855 557 AC147651.3
#> 20: ENSG00000122566 557 HNRNPA2B1
#> gene_id cluster_member gene_symbol
#> <char> <num> <char>The resulting modules should roughly correspond to the major cell-type programmes in PBMCs (T cell, monocyte, B cell, NK cell signatures, etc.). Let’s visualise this with AUCell check it out.
hotspot_gene_sets <- membership %$% split(gene_id, cluster_member)
hotspot_gene_sets <- lapply(hotspot_gene_sets, function(genes) {
list(pos = genes)
})
vision_scores_hotspot <- vision_sc(
object = sc_object,
gs_list = hotspot_gene_sets,
.verbose = FALSE
)
vision_scores_dt <- as.data.table(
vision_scores_hotspot,
keep.rownames = "cell_id"
)
vision_scores_dt <- merge(vision_scores_dt, umap_dt, by = "cell_id")
vision_scores_long <- melt(
vision_scores_dt,
id.vars = c("cell_id", "umap_1", "umap_2"),
measure.vars = names(hotspot_gene_sets),
variable.name = "gene_set",
value.name = "vision_score"
)
# min max individually for prettier visualisations
vision_scores_long[,
vision_score_scaled := (vision_score - min(vision_score)) /
(max(vision_score) - min(vision_score)),
by = gene_set
]

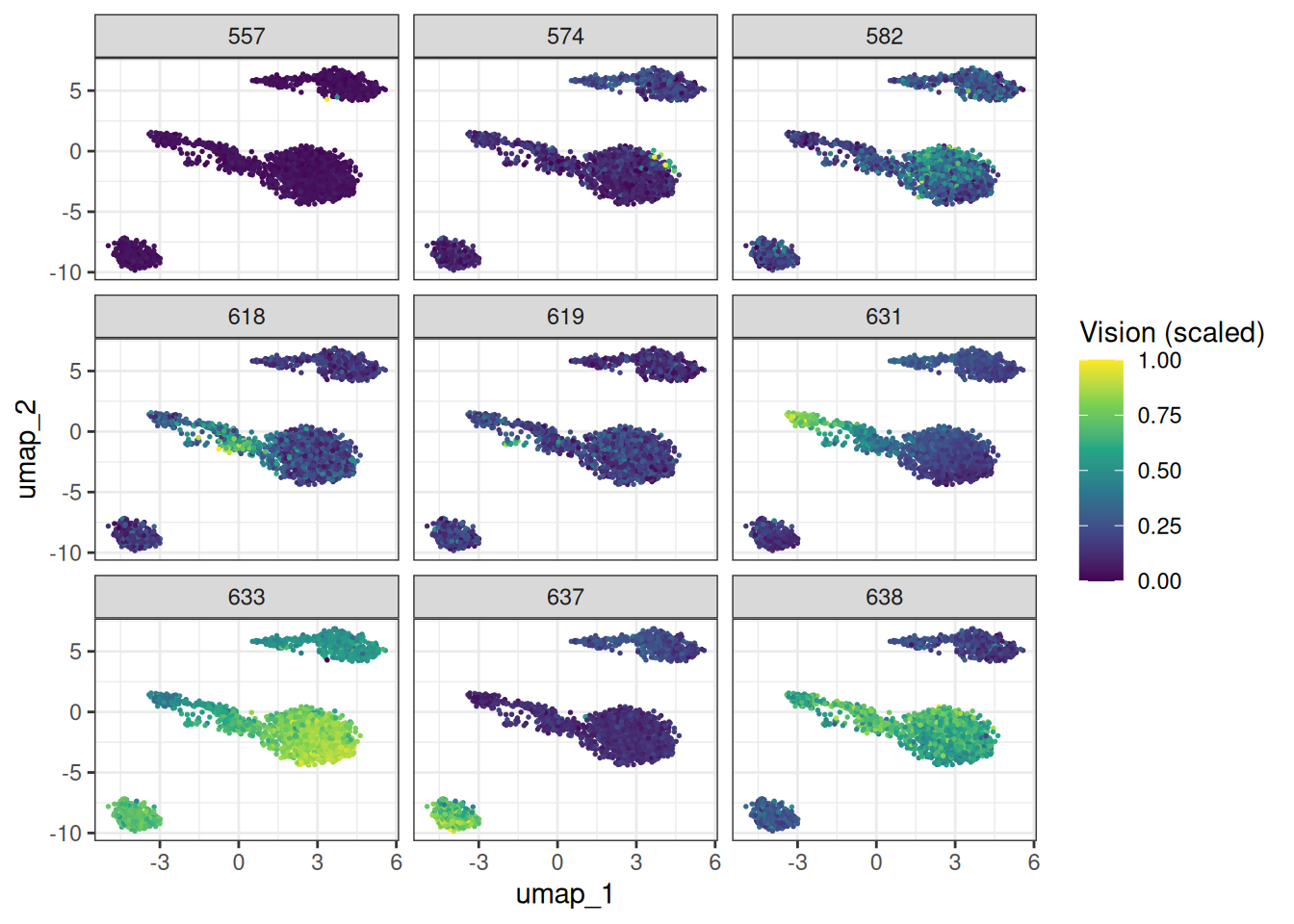

ggplot(vision_scores_long, aes(x = umap_1, y = umap_2)) +
geom_point(aes(colour = vision_score_scaled), size = 0.3) +
scale_colour_viridis_c() +
facet_wrap(~gene_set) +
theme_bw() +
labs(colour = "Vision (scaled)")
SCENIC
SCENIC infers gene regulatory networks by asking: for each gene, which transcription factors (TFs) best predict its expression? The original implementation uses either random forests or GRNBoost2 (gradient boosted trees) to regress each target gene on all TFs, then extracts feature importances as a proxy for regulatory strength.
The bixverse implementation re-implements this in Rust with several optimisations that make the RF and ExtraTrees paths substantially faster than the single-target-at-a-time approach used by GRNBoost2:
- Quantisation: TF expression values are discretised into 256 bins (u8), so histogram construction during tree building operates on single bytes and fits comfortably in L1 cache.
- Multi-output batching: up to 64 target genes share a single tree structure. The histogram construction cost is paid once per node per feature, but the split score aggregates variance reduction across all targets in the batch. This amortises the dominant cost of tree building across targets.
- Correlated gene batching: rather than assigning genes to batches randomly, an optional SVD + k-means step groups co-expressed genes together so that the shared tree structure is more informative for each target in the batch.
- GRNBoost2 with histogram subtraction: for the gradient boosted path (single-target), the code builds full-feature histograms at each node and derives the larger child via parent-minus-smaller subtraction, avoiding a redundant scan of the larger child’s samples. OOB early stopping prevents overfitting and is the main source of speedup.
On the 2,700-cell PBMC3k dataset these optimisations are not that noticeable… The data is too small for any method to take long. On datasets with tens of thousands of cells and thousands of TFs, the RF/ET multi-output path comfortably outperforms GRNBoost2. You need to just decide if you are okay with the batching of genes. Generally speaking, the big signals will be recovered again and again (from empirical testing).
Gene filtering
SCENIC first filters genes by minimum total counts and minimum proportion of expressing cells to remove uninformative targets.
scenic_genes <- scenic_gene_filter_sc(
object = sc_object,
scenic_params = params_scenic(min_counts = 50L),
.verbose = FALSE
)
length(scenic_genes)
#> [1] 5430Transcription factor list
We need a list of known TFs. The Aerts lab provides a curated list for human which we can download and map to Ensembl IDs.
GRN inference
With genes and TFs in hand, we run the GRN inference step. Here we use random forests with a batch size of 64 to illustrate the multi-output path.
scenic_res <- scenic_grn_sc(
object = sc_object,
tf_ids = tf_dt$gene_id,
genes_to_take = scenic_genes,
scenic_params = params_scenic(
learner_type = "randomforest",
gene_batch_size = 64L
),
.verbose = TRUE
)
#> SCENIC: 5430 target genes, 466 TFs, 2163 cells
scenic_res
#> ScenicGrn (GRN results)
#> No genes: 5430
#> No TFs: 466
#> Applied learner: randomforest
#> TF to gene generated: FALSE
#> CisTarget res generated: FALSEIf you are bored, you can run both methods (learner_type = "grnboost2") and compare the importance scores. You will see very high correlations here (and can explore the speed differences…)
TF-to-gene refinement
The raw importance matrix is large and noisy. The next steps winnow it down to a candidate regulatory network by keeping only the top TF-gene pairs and filtering by pairwise expression correlation. The approach used here is that per gene only TFs with an importance score ≥ mean(importance_score) + n_sd * sd(importance_score) per given gene are kept. Note that n_sd should be adjusted depending on the learner: RF and ExtraTrees spread importance more evenly across TFs than GRNBoost2, so a lower threshold (e.g. n_sd = 1) is appropriate, whereas GRNBoost2 concentrates importance onto fewer TFs and tolerates n_sd = 1.5 or even n_sd = 2.
scenic_res <- identify_tf_to_genes(
scenic_res,
n_sd = 2,
.verbose = TRUE
)
#> Extracting TF to gene associations via per-gene threshold (mean + 2.0 * SD).
scenic_res <- tf_to_genes_correlations(
x = scenic_res,
object = sc_object,
cor_filter = 0.01,
.verbose = TRUE
)
#> Calculating the pairwise correlations between the TFs and genes
#> Removing TF <> gene pairs with cors <= 0.010
#> Removing self loops (TF controlling its own expression
tf_gene_dt <- get_tf_to_gene(scenic_res)
tf_gene_dt[, tf_symbol := ensembl_to_symbol[tf]]
tf_gene_dt[, gene_symbol := ensembl_to_symbol[gene]]
head(tf_gene_dt[order(-importance)], 5L)
#> tf gene importance pairwise_cor tf_symbol
#> <char> <char> <num> <num> <char>
#> 1: ENSG00000171223 ENSG00000120129 0.2730128 0.3743879 JUNB
#> 2: ENSG00000170345 ENSG00000120129 0.2646697 0.3395905 FOS
#> 3: ENSG00000139187 ENSG00000113088 0.2429312 0.2531497 KLRG1
#> 4: ENSG00000066336 ENSG00000181444 0.2389428 0.2116035 SPI1
#> 5: ENSG00000221869 ENSG00000115828 0.2366143 0.2871167 CEBPD
#> gene_symbol
#> <char>
#> 1: DUSP1
#> 2: DUSP1
#> 3: GZMK
#> 4: ZNF467
#> 5: QPCTCisTarget motif enrichment
The final (and optional) step in the SCENIC pipeline validates the predicted TF-gene links against known motif binding sites. This requires downloading the CisTarget motif ranking database and motif-to-TF annotation files from the Aerts lab resources, which together are roughly 1.5 GB. We therefore show the code but do not evaluate it by default.
# Download the CisTarget reference files (cached after first download)
paths <- download_cistarget_hg38()
rankings <- read_motif_ranking(paths$rankings)
annotations <- read_motif_annotation_file(paths$motif_annotations)
# Run motif enrichment on the TF-gene links
scenic_res <- tf_to_genes_motif_enrichment(
x = scenic_res,
motif_rankings = rankings,
annot_data = annotations,
# we store everything as Ensembl... The SCENIC data has gene symbols, hence,
# the need to provide conversion
gene_id_to_symbol = ensembl_to_symbol,
cis_target_params = params_cistarget(
nes_threshold = 3.0
),
only_high_conf_tf = FALSE,
.verbose = TRUE
)
# CisTarget results per TF
cistarget_dt <- get_cistarget_res(scenic_res)
head(cistarget_dt[order(-nes)])
# The TF-to-gene table now has a leading_edge column indicating which
# genes fall within the motif recovery curve
tf_gene_final <- get_tf_to_gene(scenic_res)
head(tf_gene_final[(in_leading_edge)][order(-importance)])This is how you work with all types of "bag of genes" analyses for single cell in bixverse.
Clean up
unlink(tempdir_pbmc, recursive = TRUE, force = TRUE)
